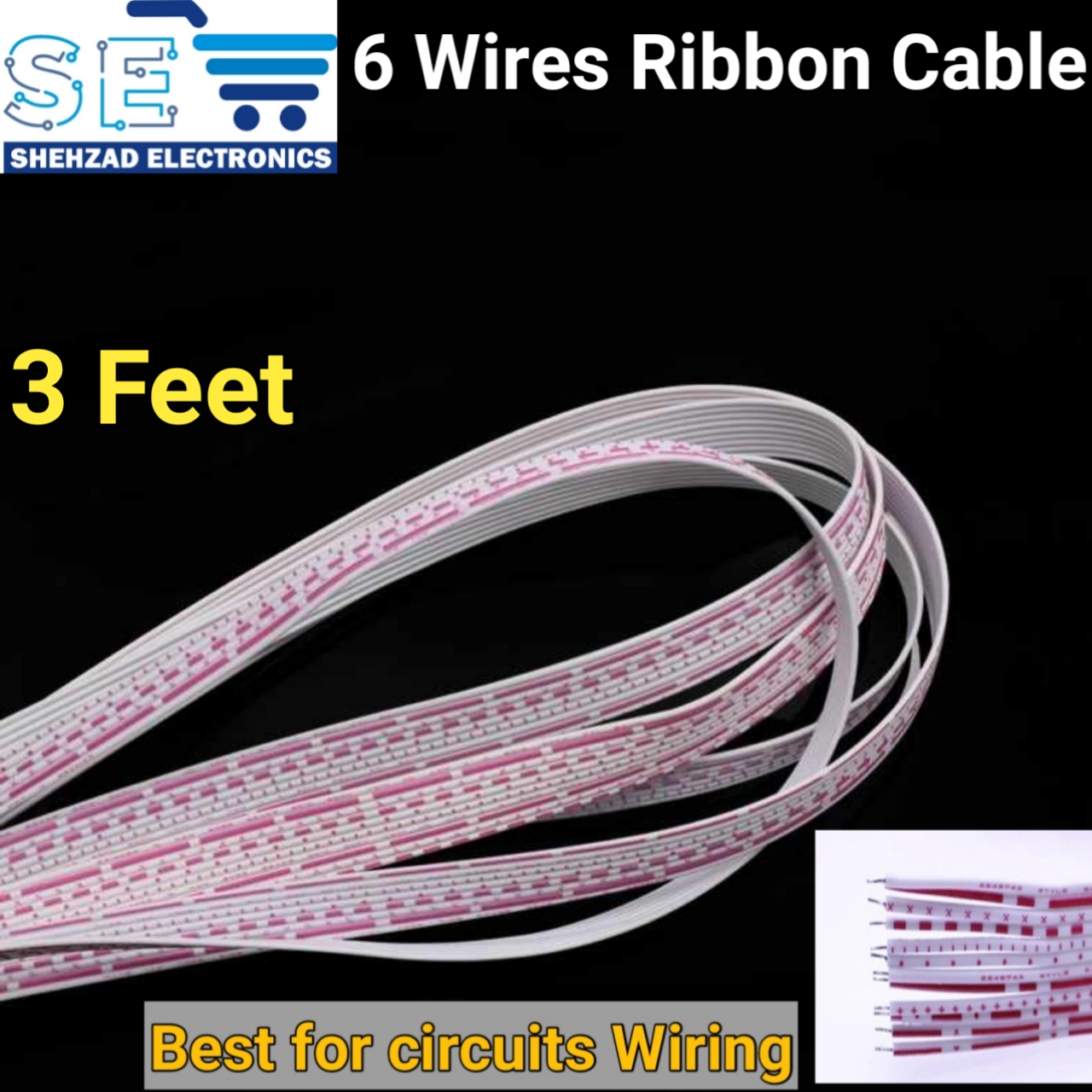

6 Wires Flat Ribbon Cable UL2468 26AWG XH2.54 6P 3 Feet
Roll over image to zoom in
₨ 50
- Type:UL-2468 Flat Ribbon wire
- External Material :PVC
- Condition:100% brand new never used
- Standard:26AWG
- Color: Red and White mixed
- PVC insulation, Tinned copper conductor
- Pitch: 0.15mm
- Out Diameter:1.3mm
- Maximum Conductor Resistance: 150 ohm/km. (at 20 degree)
- Rated temperature: 80 degree
- Rated voltage: 300V
- Passes UL VW-1 & CSA FT1 vertical flame test.
- Application: Internal wiring of audio/video equipment ,available for use with I.D.C Connectors
Type:UL-2468 Flat Ribbon wire
External Material :PVC
Condition:100% brand new never used
Standard:26AWG
Color: Red and White mixed
PVC insulation, Tinned copper conductor
Pitch: 0.15mm
Out Diameter:1.3mm
Maximum Conductor Resistance: 150 ohm/km. (at 20 degree)
Rated temperature: 80 degree
Rated voltage: 300V
Passes UL VW-1 & CSA FT1 vertical flame test.
Application: Internal wiring of audio/video equipment, available for use with I.D.C Connectors
