12V 7A DC Motor Speed Controller PWM Variable Voltage Regulator Dimmer Switch Module 5V-12V High Power

Roll over image to zoom in
Click to open expanded view

₨ 275

In stock

  • 🌈 Dual-Purpose Control: Expertly designed to manage both DC Motor speed and LED Dimming applications with high precision.
  • 🔋 Wide Input Range: Compatible with a variety of power sources ranging from DC 5V up to 16V, perfect for battery-operated setups.
  • 💪 High Current Capacity: Supports a steady 10A continuous load and a robust 20A peak current for heavy-duty start-ups.
  • 🔘 Integrated Power Switch: Features a built-in On/Off click switch within the potentiometer for convenient one-knob operation.
  • 🚀 Advanced PWM Technology: Provides smooth, flicker-free, and stepless regulation with a duty cycle ranging from 1% to 99%.
  • ⚡ Superior 98% Efficiency: Engineered for maximum power conversion, ensuring the module stays cool while saving energy.
  • 📉 Low Standby Consumption: Draws a negligible 0.002A when switched off, preventing unnecessary battery drainage.

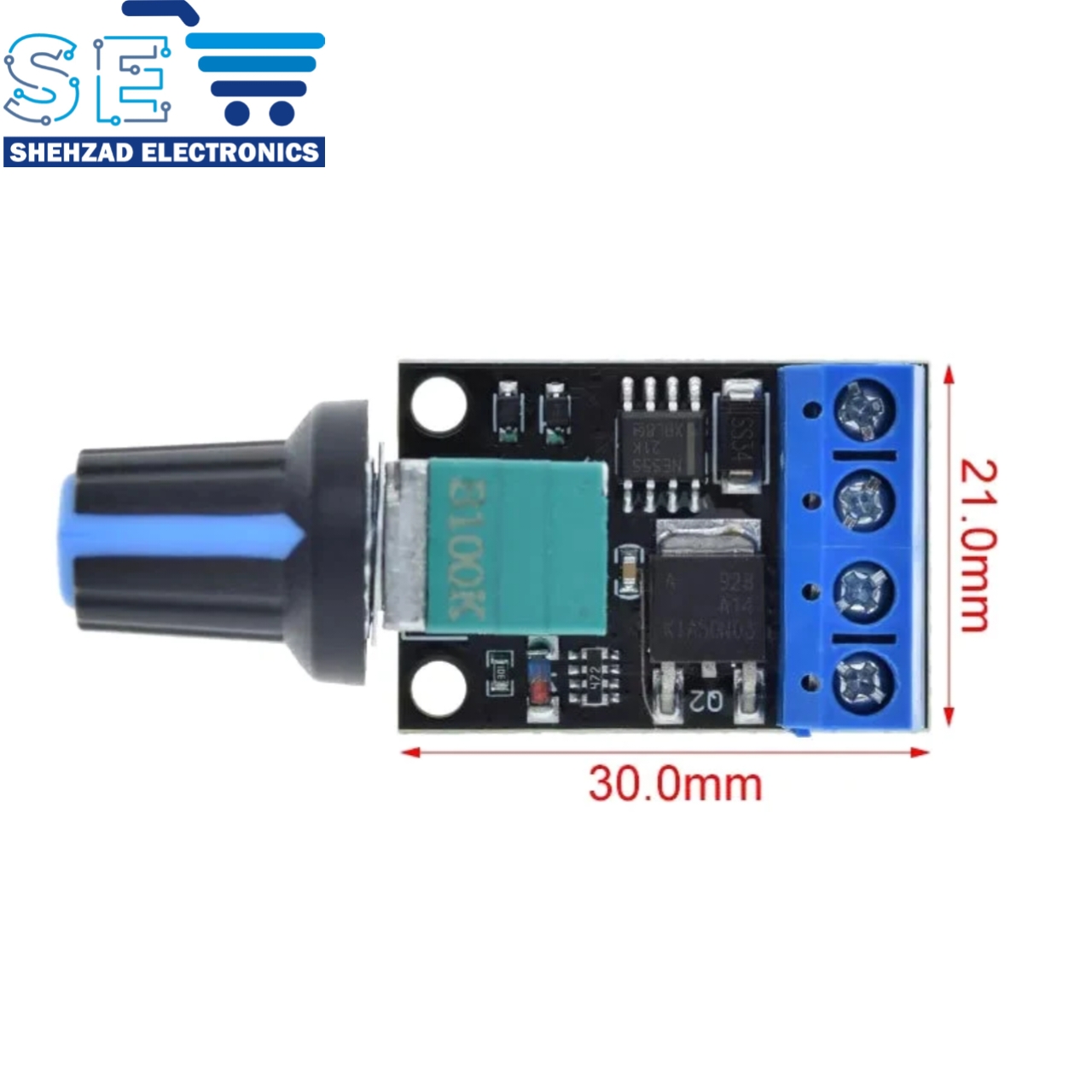

  • 📏 Ultra-Compact Design: The miniature PCB measures only 30mm x 21mm, allowing it to fit into the smallest DIY project boxes.
Wishlist
Compare
Category:
This professional-grade PWM (Pulse Width Modulation) DC Motor Speed Controller is an essential tool for anyone looking to achieve precise control over DC motors and LED lighting systems. Operating on a wide voltage range of 5V to 16V, this versatile module allows for smooth, stepless regulation from 1% to 99% output. Whether you are building a custom robotics project, adjusting the flow of a DC water pump, or dimming high-brightness LED strips, this controller delivers exceptional performance with an incredible 98% energy efficiency.

The module features a high-quality potentiometer with an integrated click-style On/Off switch, eliminating the need for external power toggles. Built for durability, it supports a 10A continuous current and can handle surges up to 20A for short durations. Its ultra-compact footprint makes it the perfect choice for space-constrained enclosures without sacrificing power or reliability.

📋 Technical Specifications:

Specifications Details
🔵 Input Voltage DC 5V – 16V
🔴 Continuous Current 10 Amperes
🟠 Maximum Peak Current 20 Amperes (< 10 seconds)
🟡 Regulation Range 0% to 99% (Stepless)
🟢 Efficiency Up to 98%
🟣 Quiescent Current 0.002A (Standby)
🟤 Board Dimensions 30.0mm x 21.0mm x 14.0mm
⚫ Control Interface Potentiometer with Built-in Switch
