12V Battery Cut Off Charging SK170 | Intelligent Automatic Charger | Overcharge Protection | SE Shehzad Electronics
Roll over image to zoom in
₨ 185
- ⚡ Intelligent Cut Off – Stops charging at 14.5V, resumes at 11.5V.
- 🔋 Battery Protection – Prevents overcharging and deep discharge.
- 🧩 Voltage Control IC – Ensures accurate and stable operation.
- 🔧 Automobile-Grade Relay – Handles high current reliably.
- 🌍 Adjustable Settings – Fine-tune voltage between 10V–14V.
- 🛠️ Compact Design – Small size, big performance.
- 💡 LED Indicators – Clear status for power, charging, and full battery.
- 📦 DIY Friendly – Easy to install and configure.
- 🔥 Durable Build – Heat-resistant and long-lasting components.
- 🏷️ Shehzad Electronics Quality – Trusted brand for electronics tools.\

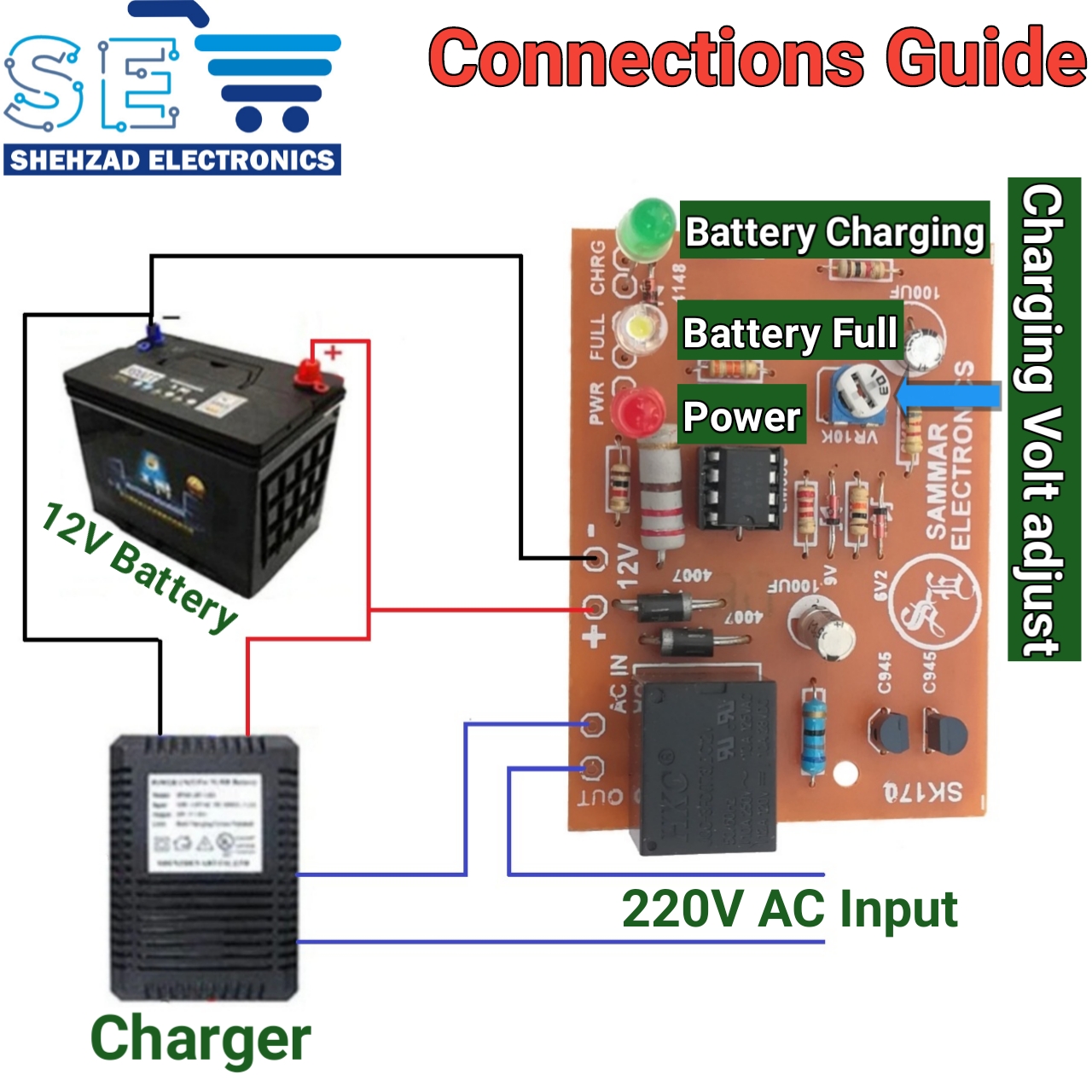

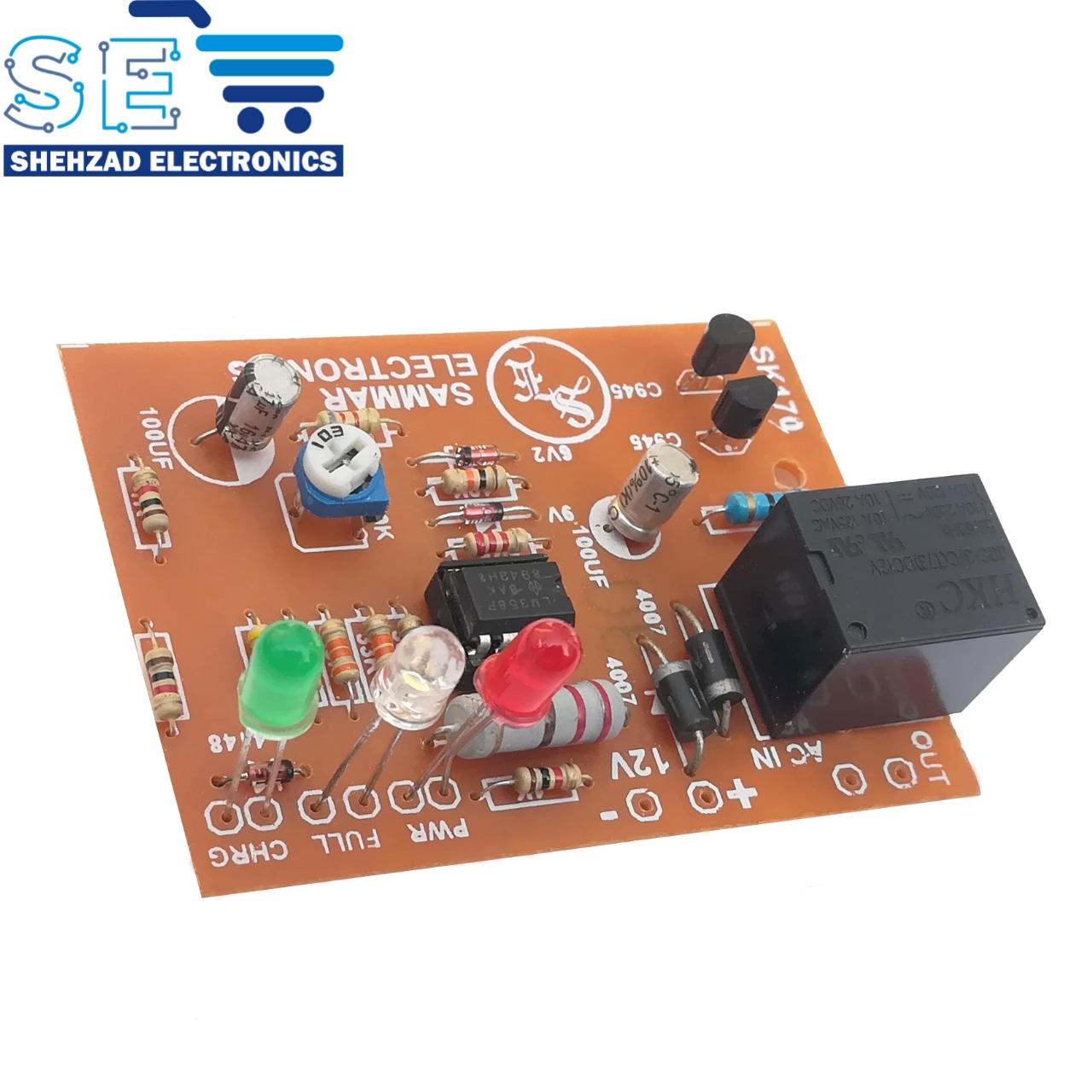

The SK170 12V Battery Cut Off Charging Circuit Control Board from Shehzad Electronics is an intelligent solution for safe and efficient battery charging. Designed with automatic cut off and restart functions, it prevents overcharging by disconnecting the power supply when the battery reaches full voltage (around 14.5V) and resumes charging when the voltage drops to approximately 11.5V. Equipped with a special voltage control IC and automobile-grade relay assembly, this board ensures accurate, stable, and reliable performance. Compact in size yet powerful in current handling, it is ideal for DIY projects, automotive applications, and professional electronics setups.
📊 Specifications
| Attribute | Details |
|---|---|
| Model Number | SK170 |
| Product Type | 12V Battery Charging Control Board |
| Input Voltage | 13.8V – 14.8V |
| Relay Operating Voltage | 12.4V |
| Relay Disconnect Voltage | 14.8V |
| Voltage Tolerance | ±0.1V |
| Adjustable Range | 10V – 14V (via potentiometer RP1, RP2) |
| LED Indicators | Power, Charging, Full Battery |
| Charging Type | 12V Storage Battery |
| Size | 73 × 52 × 27 mm |
| Brand | Shehzad Electronics |
