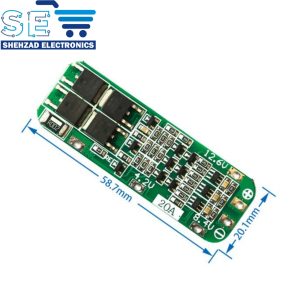

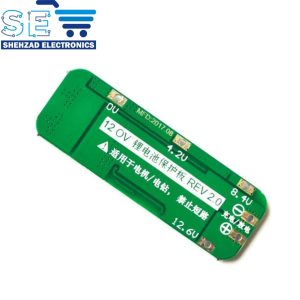

3S 20A 12V Lithium Battery Charger Protection Board Module 18650 Li-ion Battery Cell Charging BMS

Note 1: in accordance with the diagram wiring 0 V, 3.7 V (B -) (B1) (B2), 11.1 V, 7.4 V (B +), don’t deliberately short circuit!

Note 2: after connected line need to recharge, just can have output.

Note 3:3 series battery, please make sure that each set of battery voltage, if not, please separate with each set of batteries in series. Discharge test, the battery voltage drops quickly is a bad battery.

Note: don’t put the good cells and in bad!Three groups of battery capacity/internal resistance as close as possible!(2 + 1 good battery, the use effect of poor battery = the use effect of three bad battery).

The attribute of the lithium battery protection board:

Modl: HX – 3 s – 01 charging pressure range: 4.25 + / – 0.05 v to 4.35 v

Size: 50 * 16 * 1.0 mm discharge voltage range: 2.3 + / – 0.05 v to 3.0 v

Maximum working current: 5-6 – a working temperature: – 40 – + 50 ?

Maximum instantaneous current: 8 a storage conditions: – 40 – + 80 ?

Static electricity: less than 30 ua useful life: more than 50000 hours

Resistance: less than 45 m O short circuit protection: to protect and restore must charge

Charging voltage: 12.6 V – 13 V

The protection plate size and device description;

The protection plate size of 50 * 16 * 1.0 mm; Components for the S – 8254 aa protection chip and AO4407 * 4;
