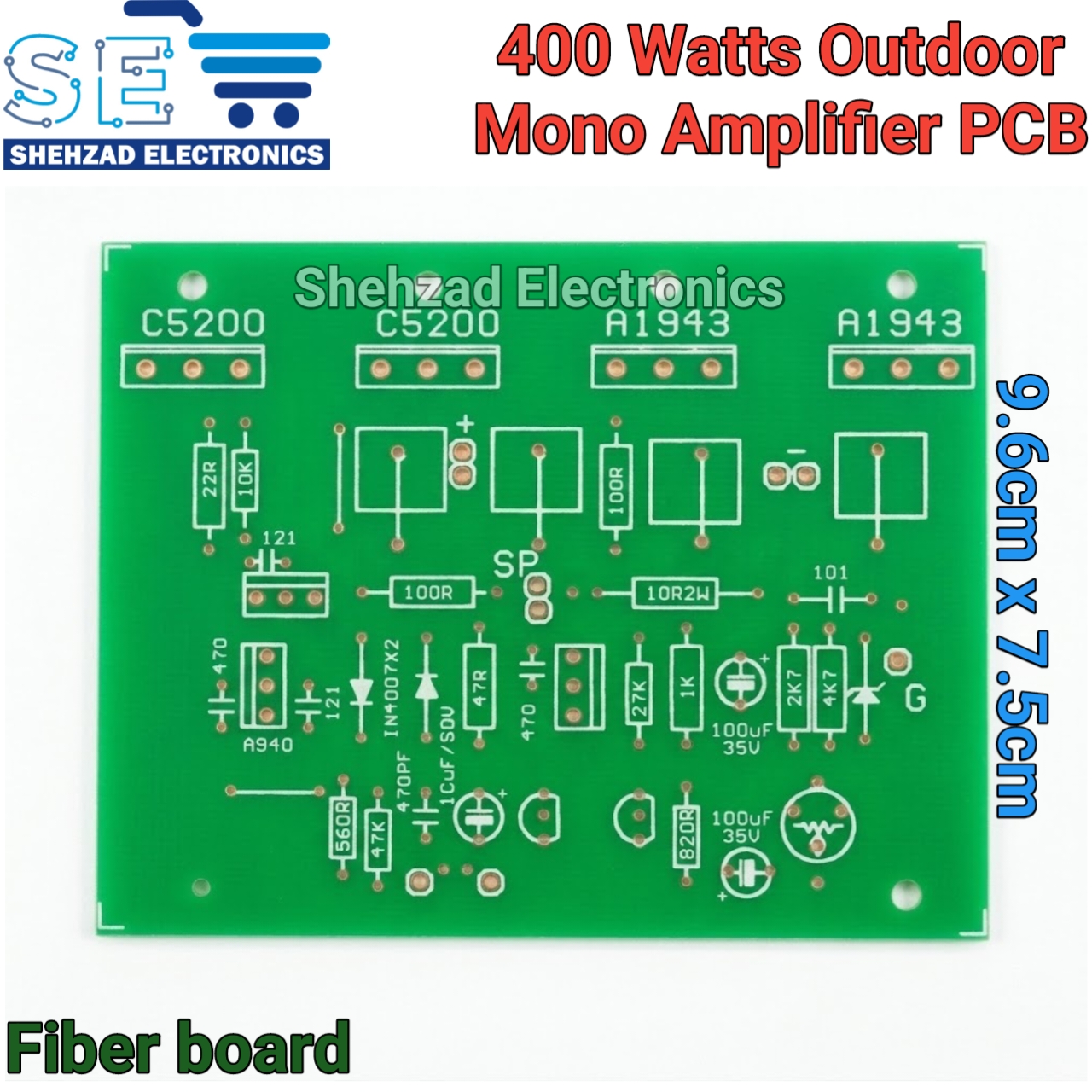

400 Watts Outdoor Mono Amplifier PCB – Compact Power for Clear Sound
Roll over image to zoom in
₨ 180
- High Power Mono Output – Delivers strong, distortion‑free sound.
- Fiber Board Durability – Built to withstand heat and stress.
- Compact Design – Fits easily into amplifier enclosures.
- Outdoor Performance – Ideal for open‑air setups.
- Easy Component Placement – Clearly labeled for quick assembly.
- Stable Current Flow – Ensures consistent audio output.
- Wide Resistor Range – Supports flexible circuit tuning.
- Reliable Transistor Support – Compatible with C5200 and A1943.
- DIY Friendly – Perfect for hobbyists and technicians.
- Trusted Brand – Quality assurance from Shehzad Electronics.
Unleash pure mono power with the Shehzad Electronics 400 Watts Outdoor Amplifier PCB, built for durability and high‑performance audio. This fiber board design supports transistors C5200 and A1943, ensuring stable output and crisp sound quality even in demanding outdoor setups. With precision‑marked positions for resistors, capacitors, and diodes, assembly is effortless and reliable. Ideal for professional audio systems, stage setups, and DIY amplifier projects, this PCB offers excellent heat resistance, efficient current flow, and long‑lasting stability. Compact yet powerful, it’s engineered to deliver consistent performance wherever sound matters most.
⚙️ Specifications
| Component | Details |
|---|---|
| Board Type | Fiber PCB |
| Power Output | 400 Watts Mono |
| Dimensions | 9.6 cm × 7.5 cm |
| Transistor Compatibility | C5200, A1943 |
| Resistors Range | 22 Ω – 47 K Ω |
| Capacitors | 100 µF / 35 V |
| Diodes | 1N4007 × 2 |
| Voltage Input | G (ground) + Power + Speaker Output |
| Brand | Shehzad Electronics |
