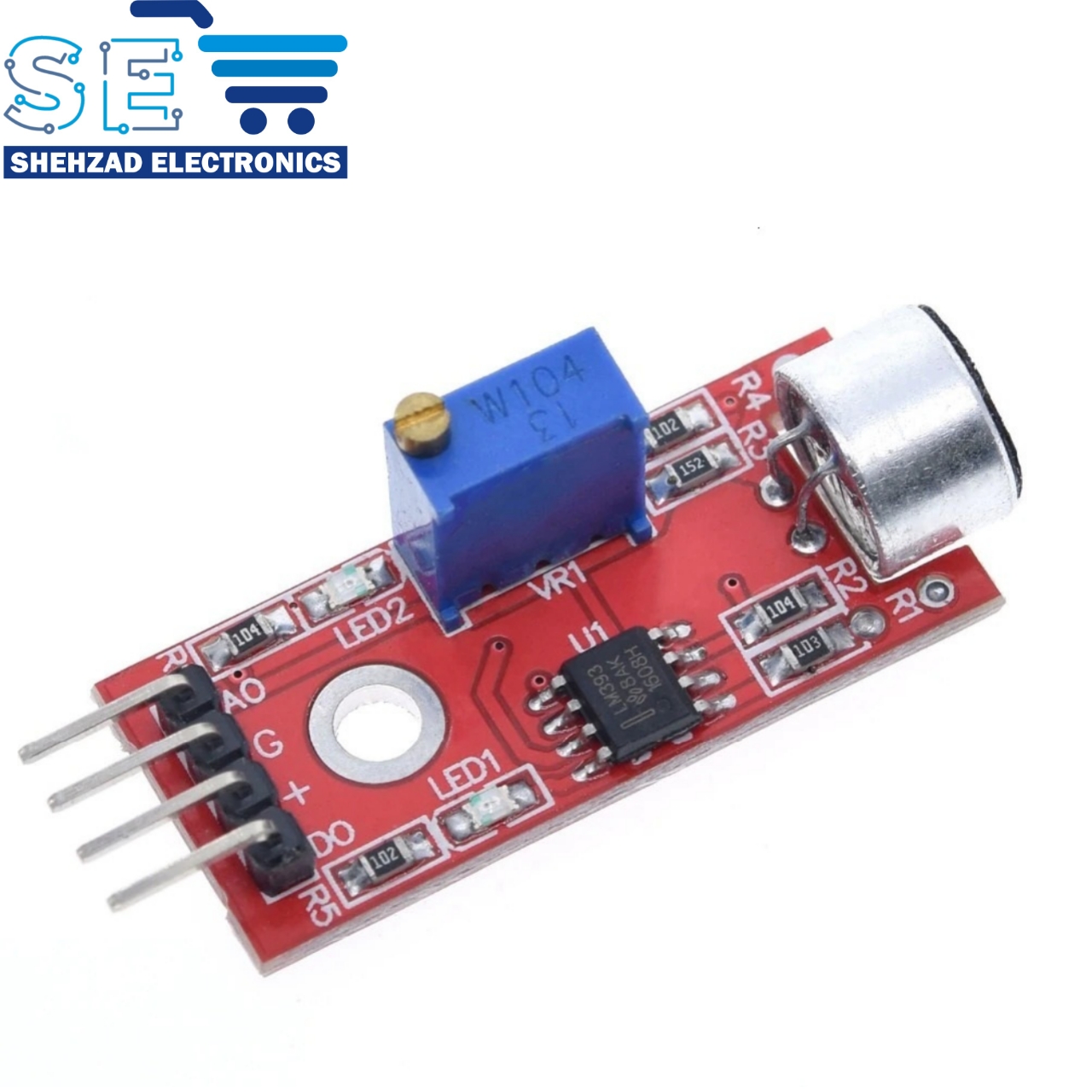

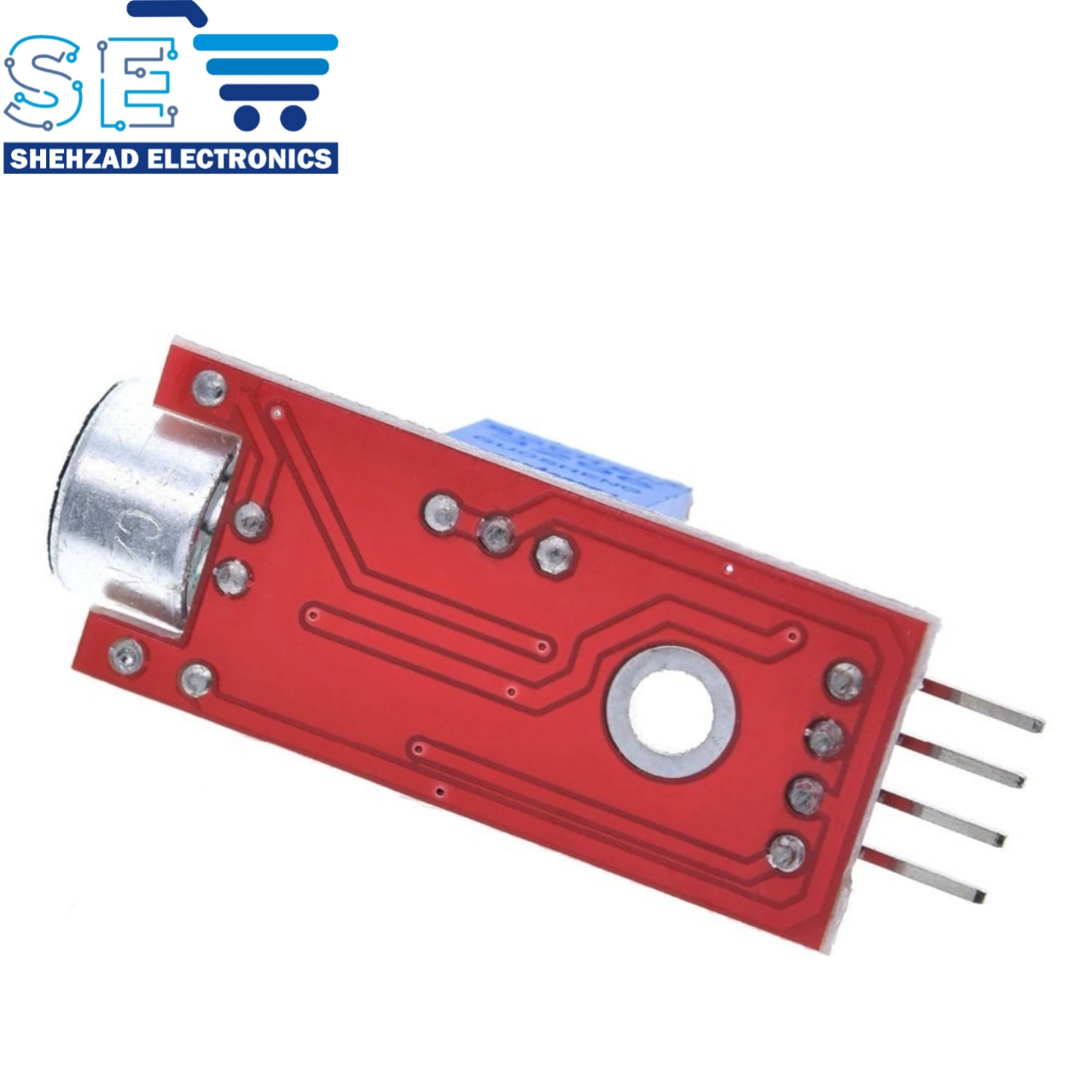

High Sensitivity Sound Microphone Sensor Detection Module For AVR PIC KY-037
Roll over image to zoom in
₨ 130
- 100% brand new and high quality
- For sound detection module has two outputs:
- There is a mounting screw hole 3mm
- The use 5v DC power supply
- With analog output
- High sensitive microphone and high sensitivity.
- A power indicator light
- The comparator output is light
100% Brand New.

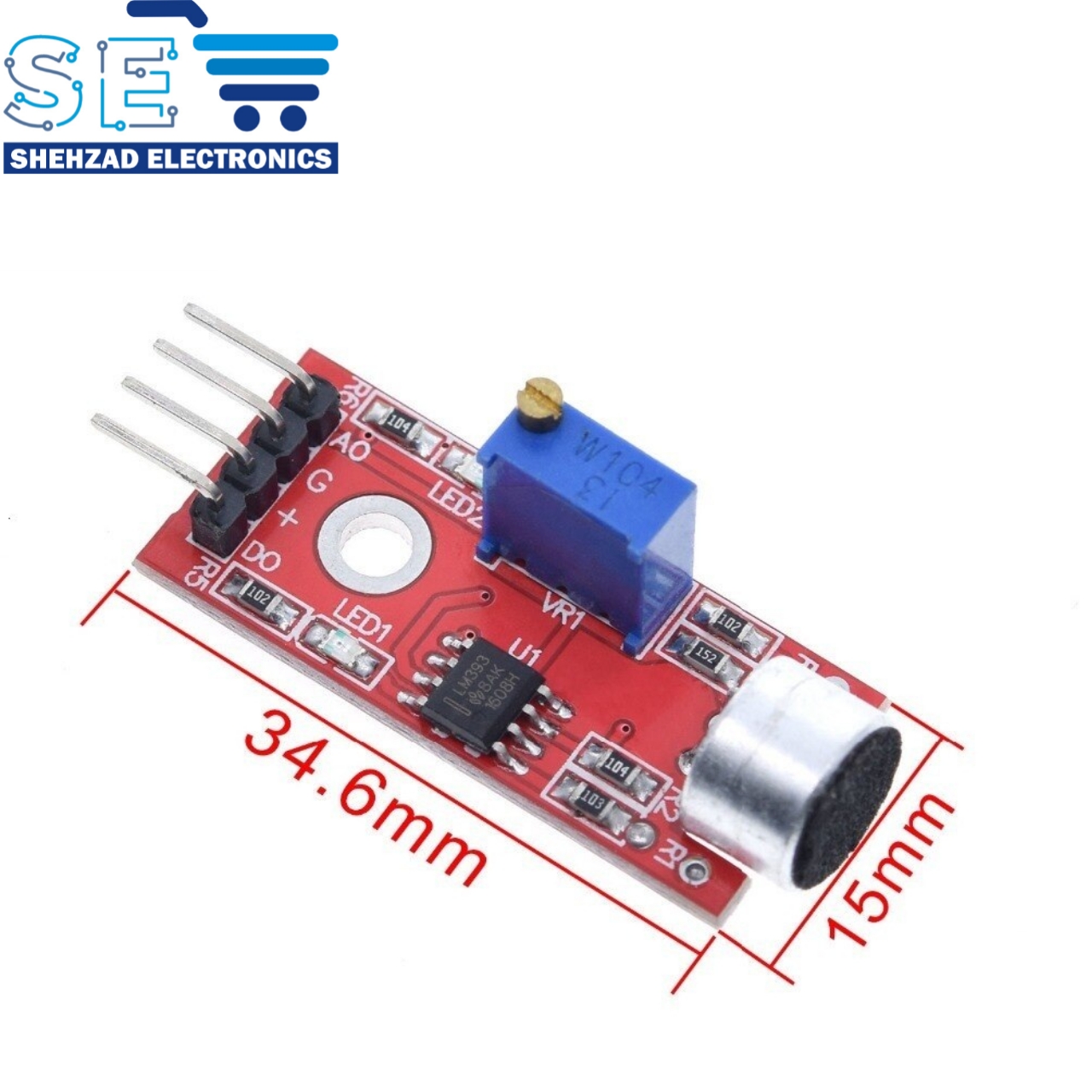

Size:32mm*17mm*8mm(length*width*height)
Main chip:LM393, Electret condenser microphone
Working voltage: DC 4-6V
Signal output indication
Single channel signal output
The output effective signal is low level
When there is sound, outputs low level and the signal light
Can be used for Acoustic control light , give sound and light alarm working with Photosensitive sensor ,and sound control, sound detect
Circuit board output switch quantity
