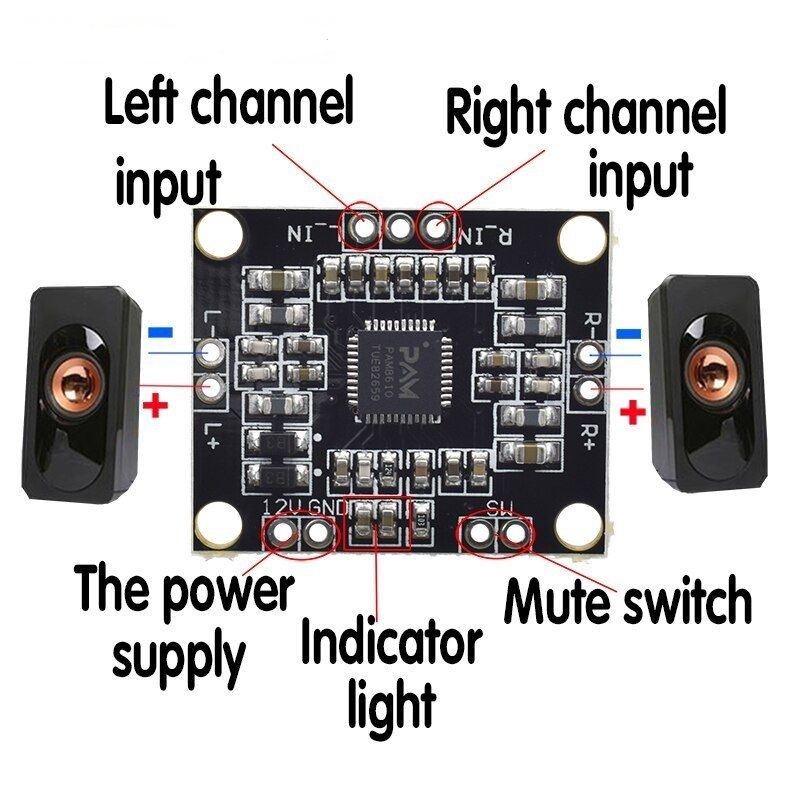

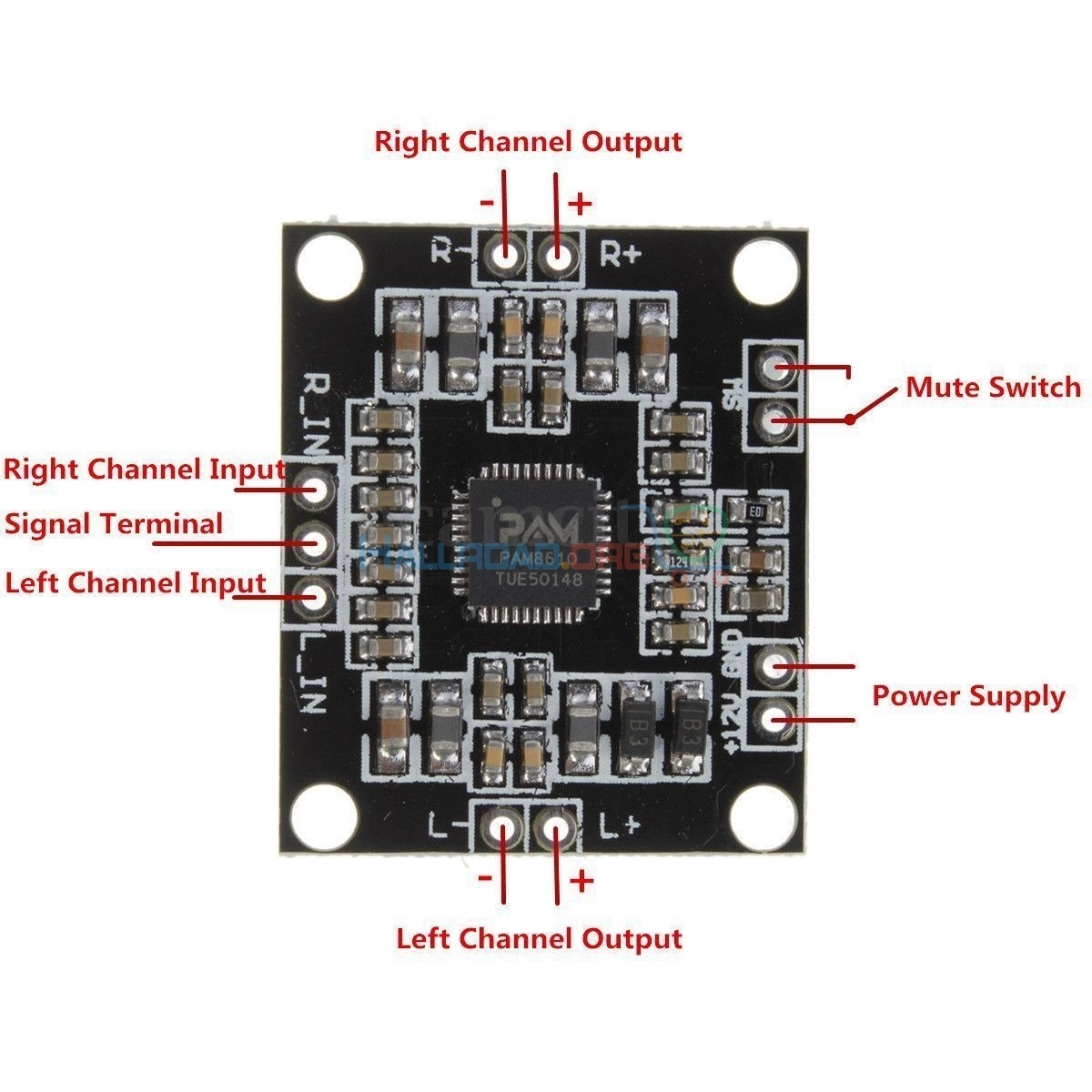

PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board

The PAM8610 is a 10W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM8610 runs off of a 7V to 15V supply at much higher efficiency than competitors’ ICs. The PAM8610 only requires very few external components, significantly saving cost and board space. The PAM8610 is available in a 40pin QFN 6mm*6mm package. Class D work Chip Type PAM8610 Power range DC6-15V Recommended voltage DC12V 2A Dimensions 28 * 22 * 2.5 Output power 10W * 2 (8 ohms) 15 * 2 (4 ohms) Frequency response 20HZ-15KHZ Channel type two-channel SNR 90db Weight 3g 1.The power supply voltage limit is 16.5V, do not use more than this voltage. 2. The power supply is recommended for 12v, 3A power supply filter better 3. 4-8 inch stereo speakers recommended. 4. Do not short-circuit the audio output to each other or shorted to ground. 5. Carefully check before electricity, ensure wiring is correct before electricity.
