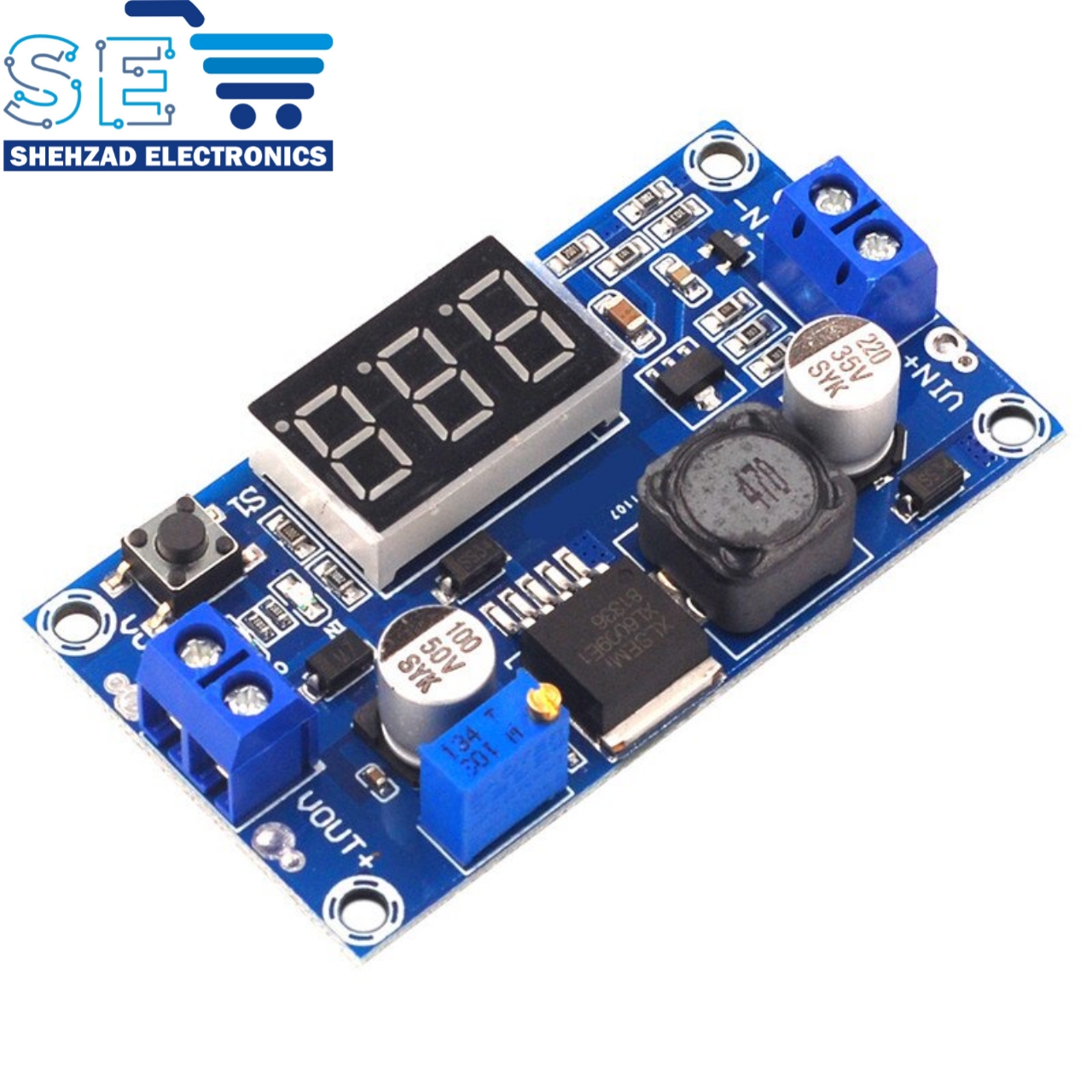

XL6009 DC-DC Step-Up Boost Converter Module with LED Voltmeter
₨ 550
⚡ Wide Input Range — Supports DC input from 4.5V to 32V
🔋 Adjustable Output Voltage — Easily adjustable from 5V to 35V
💡 Built-in LED Voltmeter — Real-time digital voltage monitoring display
🚀 High Efficiency Design — Conversion efficiency up to 94%
🎛️ Precision Voltage Adjustment — Smooth tuning using onboard potentiometer
🛡️ Safety Protection — Includes overheat and short-circuit protection
📟 Input/Output Voltage Display Switching — One-touch voltage monitoring selection
🔄 400KHz High Switching Frequency — Smaller ripple and stable output performance
🔌 3A Maximum Input Current — Suitable for various medium-power applications
📦 Compact DIY-Friendly Module — Perfect for electronics projects and power systems
Power up your electronic projects with the powerful and efficient XL6009 DC-DC Boost Converter Module featuring a built-in LED Digital Voltmeter Display. This advanced step-up voltage regulator is designed to convert low DC voltage into higher adjustable output voltage with excellent efficiency and stable performance.
Supporting an input range of 4.5V to 32V and adjustable output from 5V to 35V, this module is ideal for DIY electronics, battery-powered devices, solar systems, LED drivers, charging circuits, automotive electronics, and portable power applications.
The onboard LED display allows real-time voltage monitoring with easy switching between input and output voltage readings. Its compact design, high switching frequency, and protection features make it a reliable choice for both hobbyists and professionals.
With up to 94% conversion efficiency, adjustable output control, and built-in overheat & short-circuit protection, the XL6009 module delivers dependable performance for a wide range of power supply projects.
📋 Specifications
| Specification | Details |
|---|---|
| Module Type | DC-DC Step-Up Boost Converter |
| IC Model | XL6009 |
| Input Voltage | 4.5V – 32V DC |
| Output Voltage | 5V – 35V DC Adjustable |
| Max Input Current | 3A |
| Conversion Efficiency | Up to 94% |
| Switching Frequency | 400KHz |
| Output Ripple | 50mV |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
| Operating Temperature | -40°C to +85°C |
| Display Type | LED Digital Voltmeter |
| Protection | Overheat & Short Circuit |
| Module Size | 6.98cm × 3.80cm |
🔧 Applications
🔹 DIY Power Supply Projects
🔹 Battery Voltage Boosting
🔹 Solar Power Systems
🔹 LED Drivers
🔹 Automotive Electronics
🔹 Mobile Charging Projects
🔹 Portable Electronic Devices
🔹 Arduino & Robotics Projects
