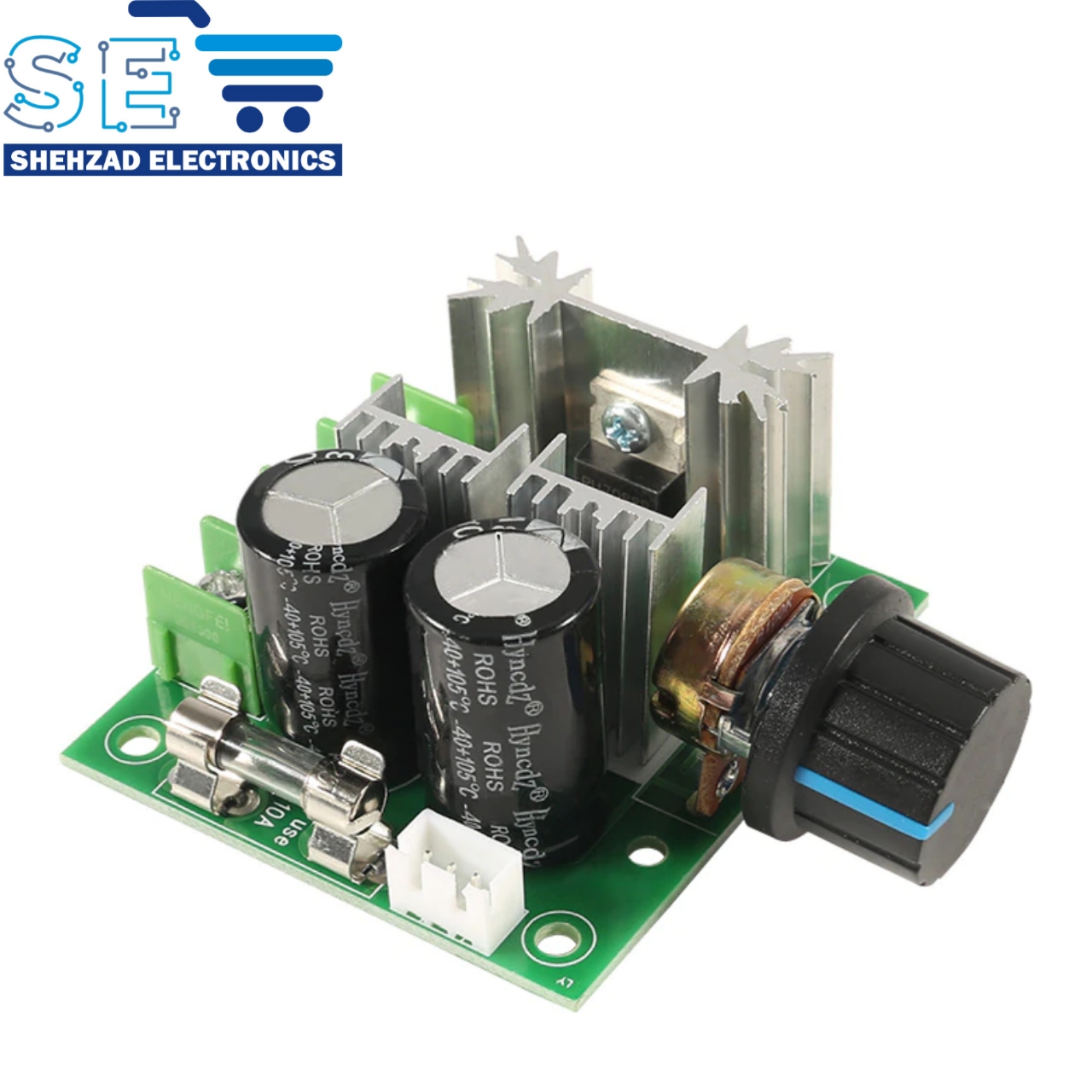

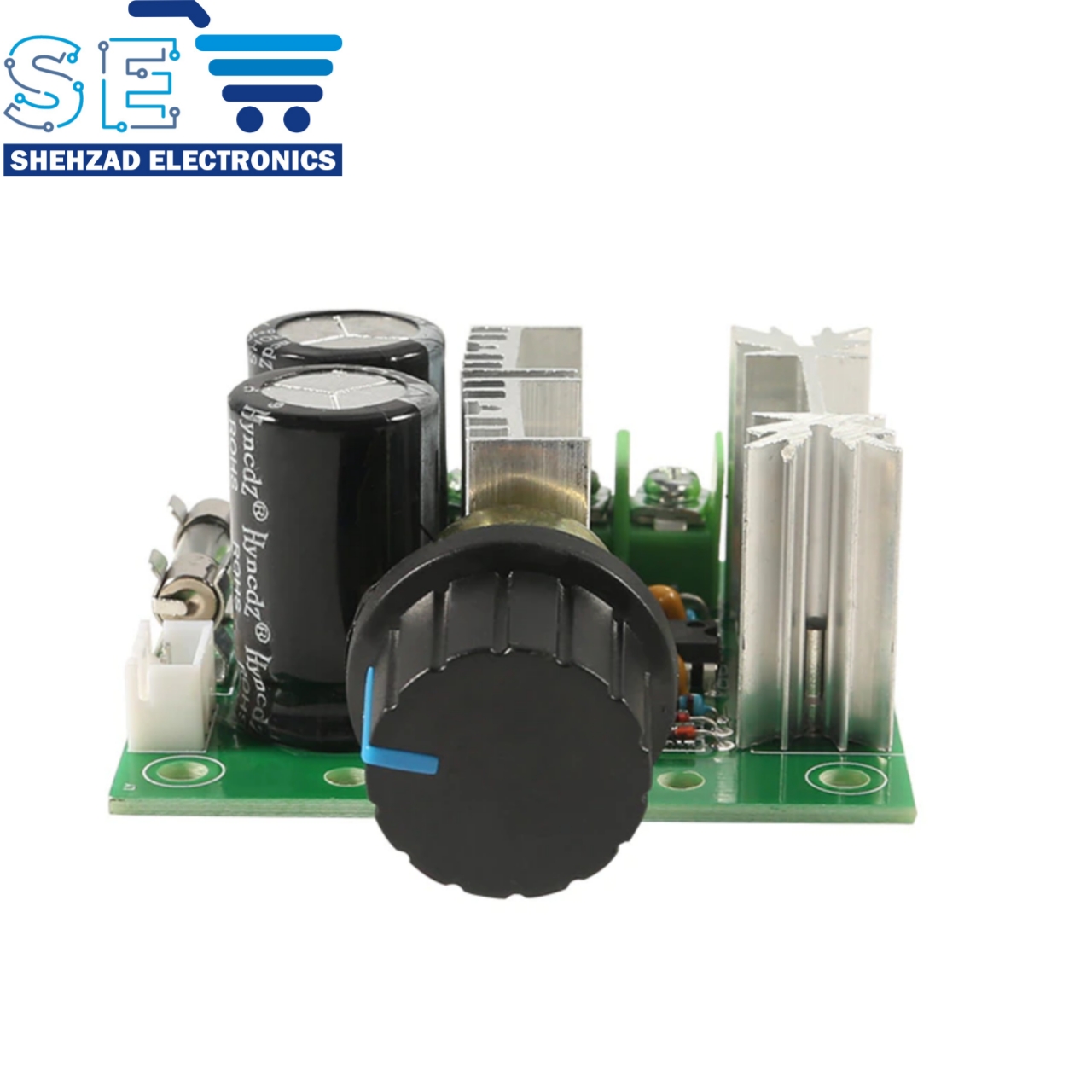

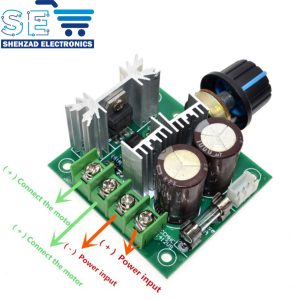

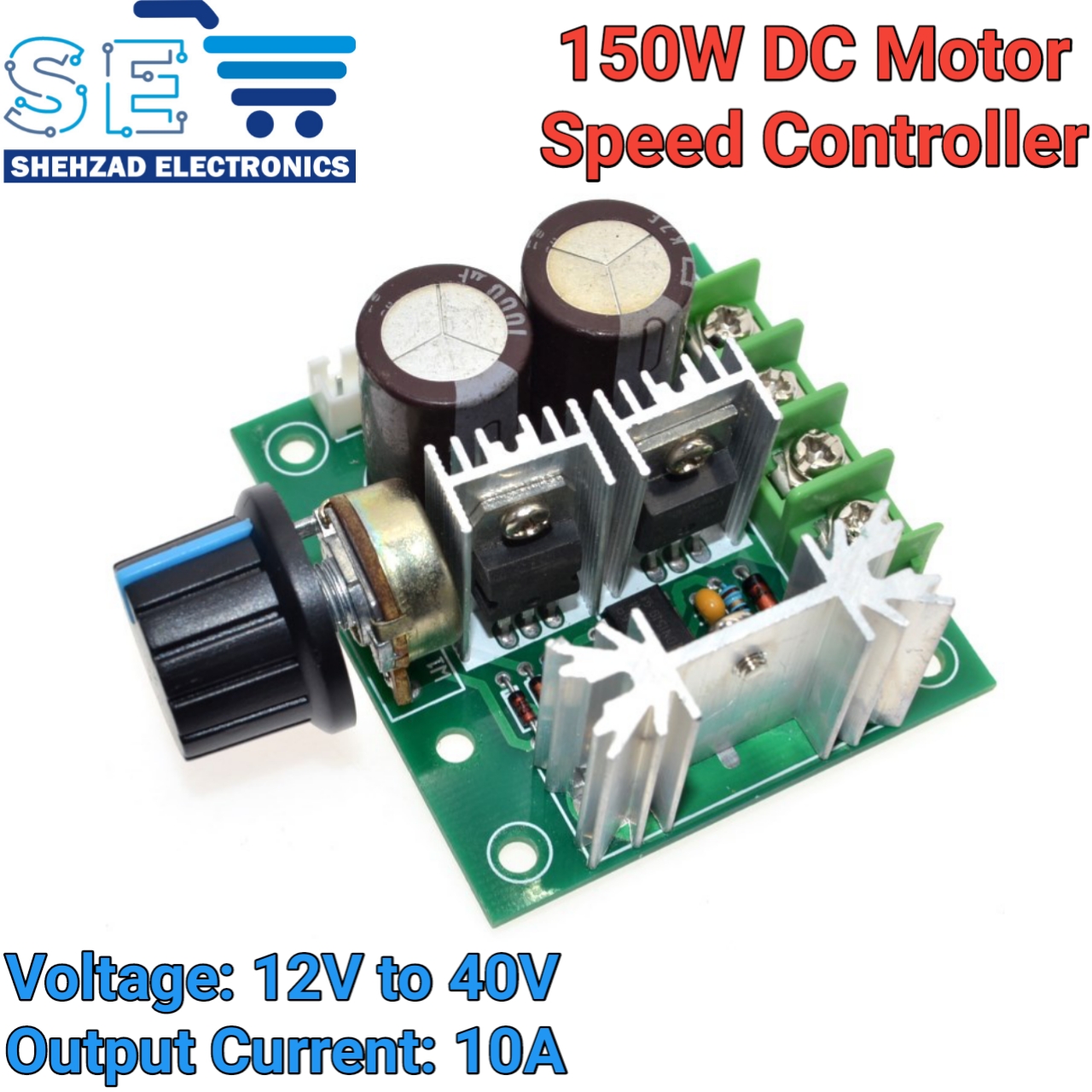

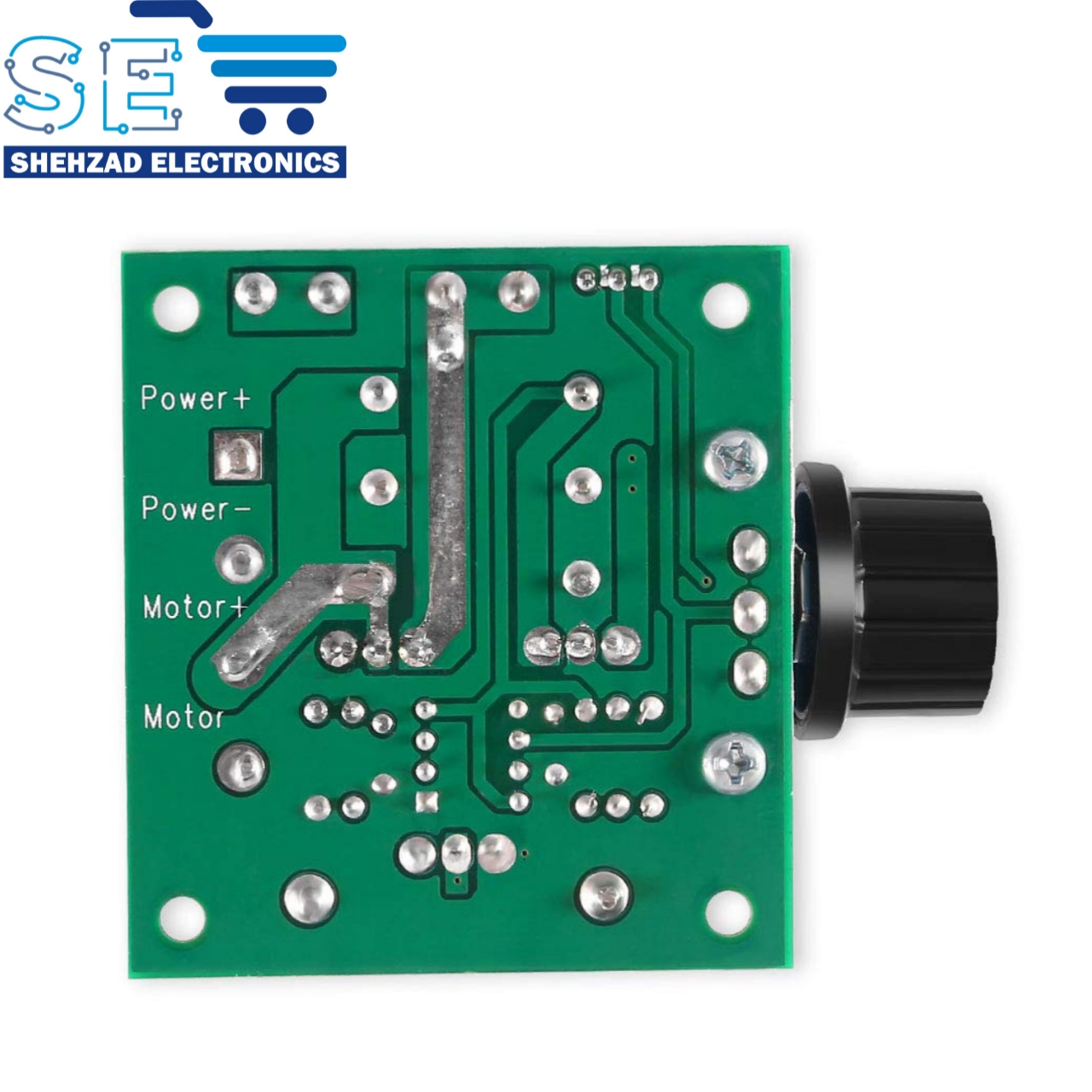

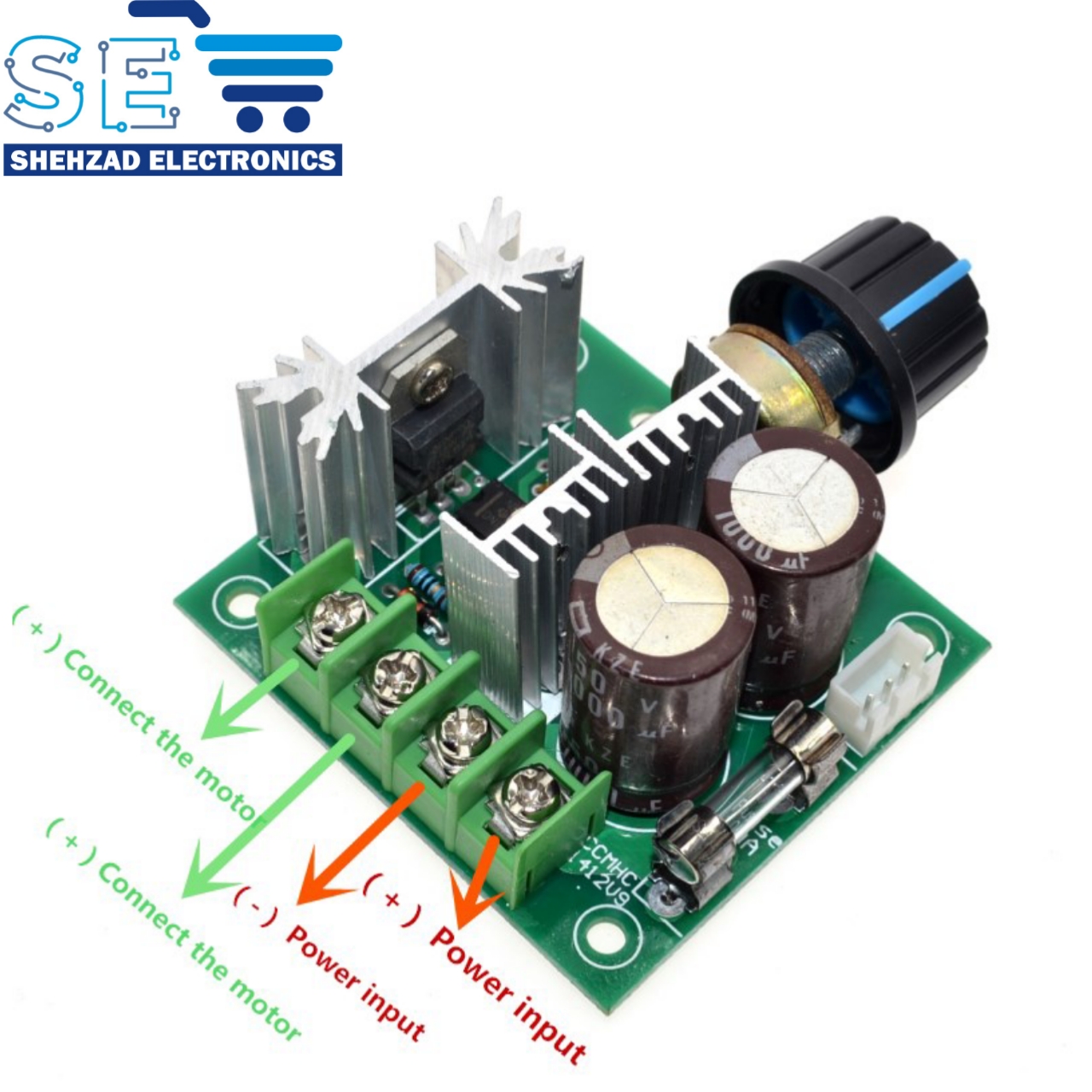

DC 12-40V 12V-40V 10A PWM Motor Speed Control Switch Controller Volt Regulator Dimmer
Roll over image to zoom in
₨ 600
- Material: Plastic, metal.
- Working Voltage: DC12V-DC40V.
- Control Power:0.01-400W.
- Static Current:0.02A( Standby ).
- PWM Duty Cycle:10%-100%.
- PWM Frequency:13KHz.
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function. Working Voltage: DC 12V – DC 40V
