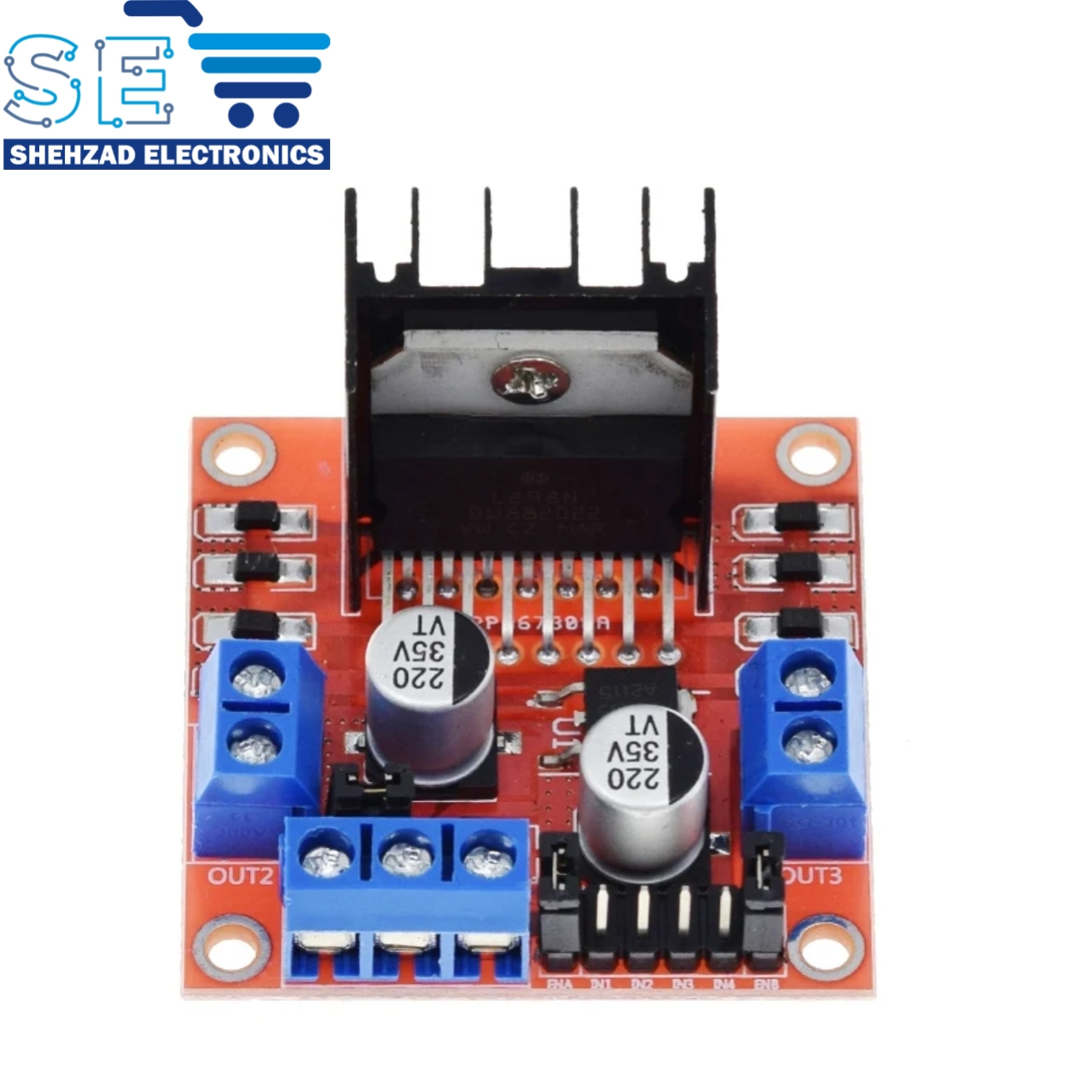

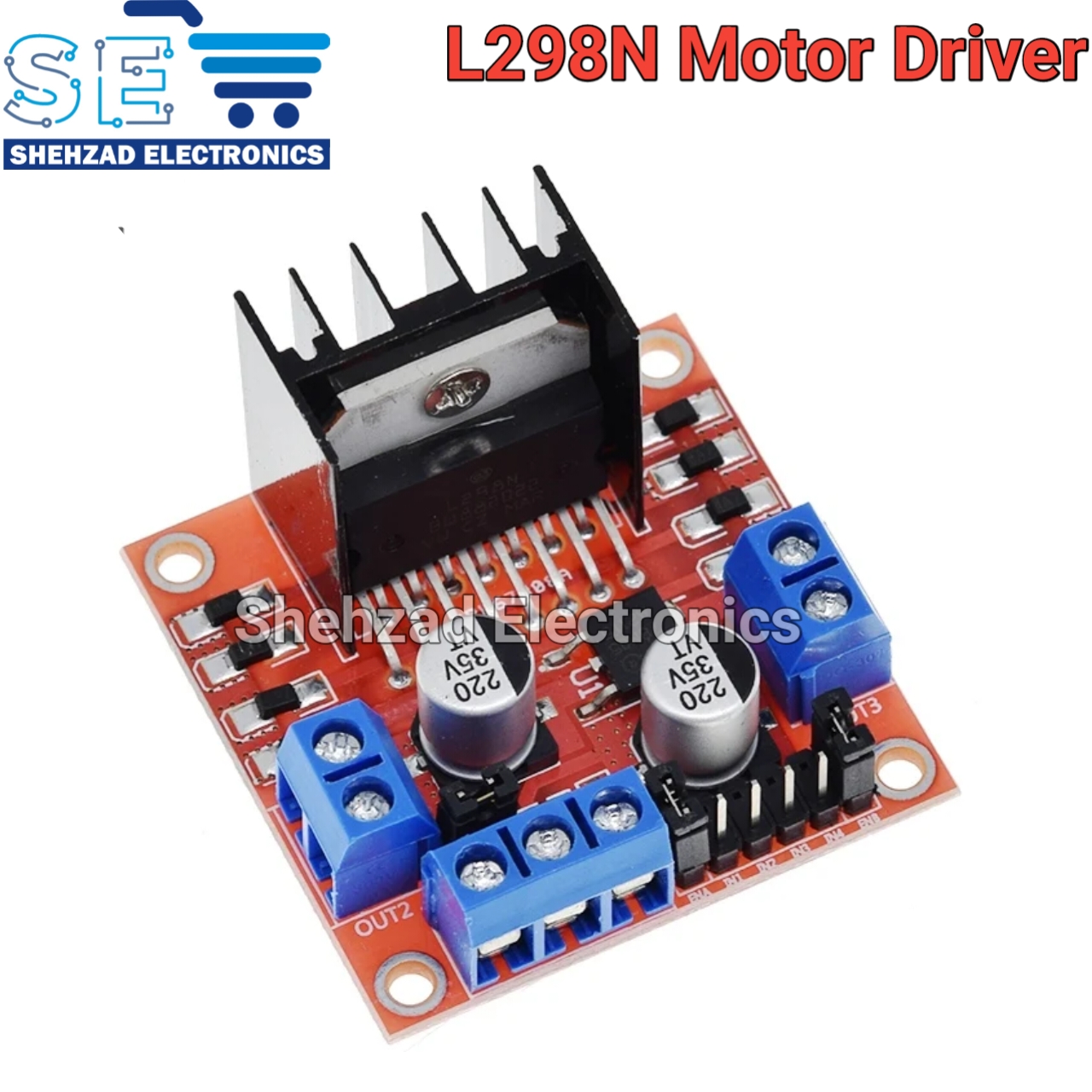

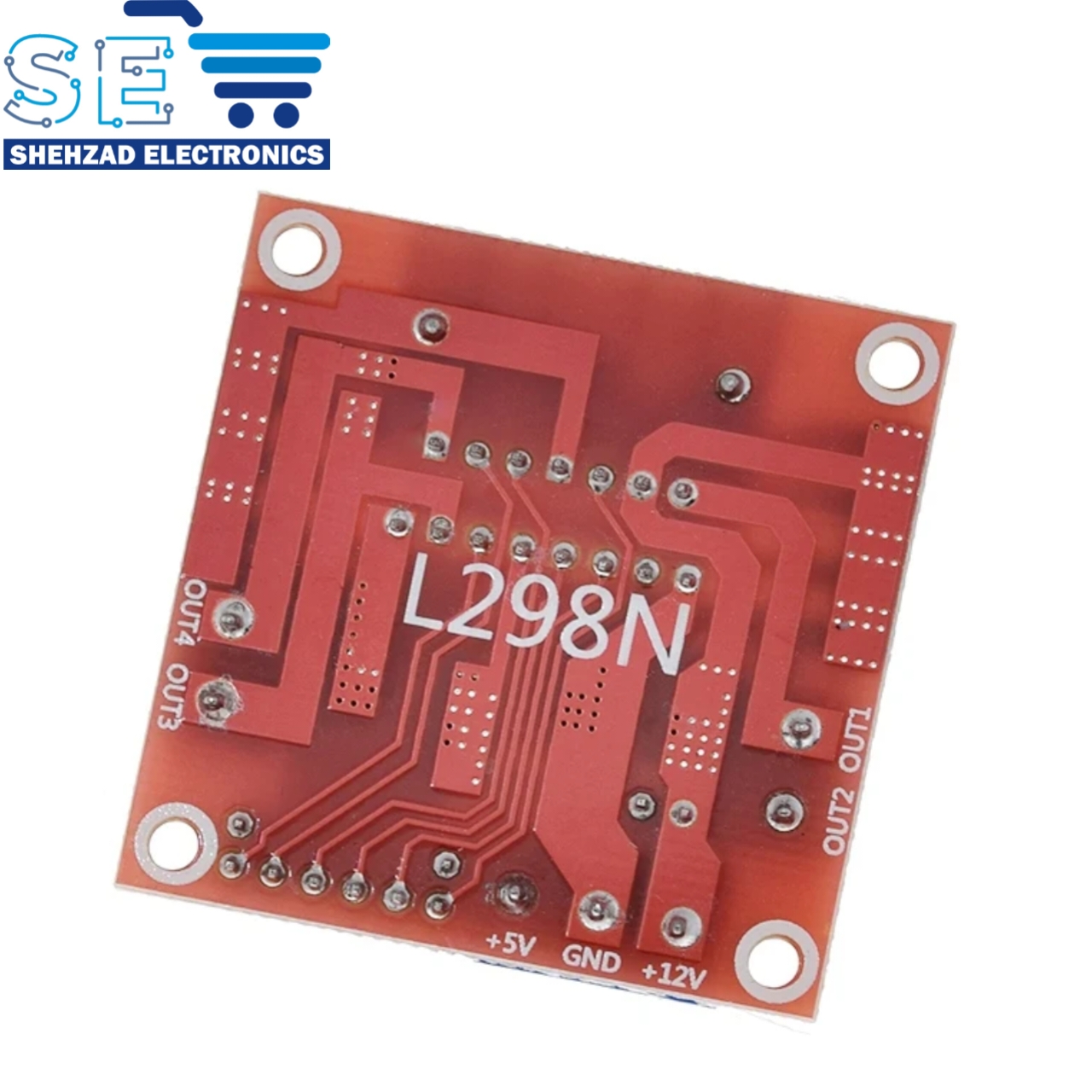

L298N Dual H-Bridge Motor Driver Module
Roll over image to zoom in
₨ 399
- ✅ Dual H-Bridge Motor Driver
- ✅ Controls 2 DC Motors or 1 Stepper Motor
- ✅ PWM Speed Control Support
- ✅ Forward & Reverse Direction Control
- ✅ Onboard 5V Voltage Regulator
- ✅ High Current Handling Capability
- ✅ Large Heat Sink for Better Cooling
- ✅ Easy Screw Terminal Connections
- ✅ Compatible with Arduino & Robotics Projects

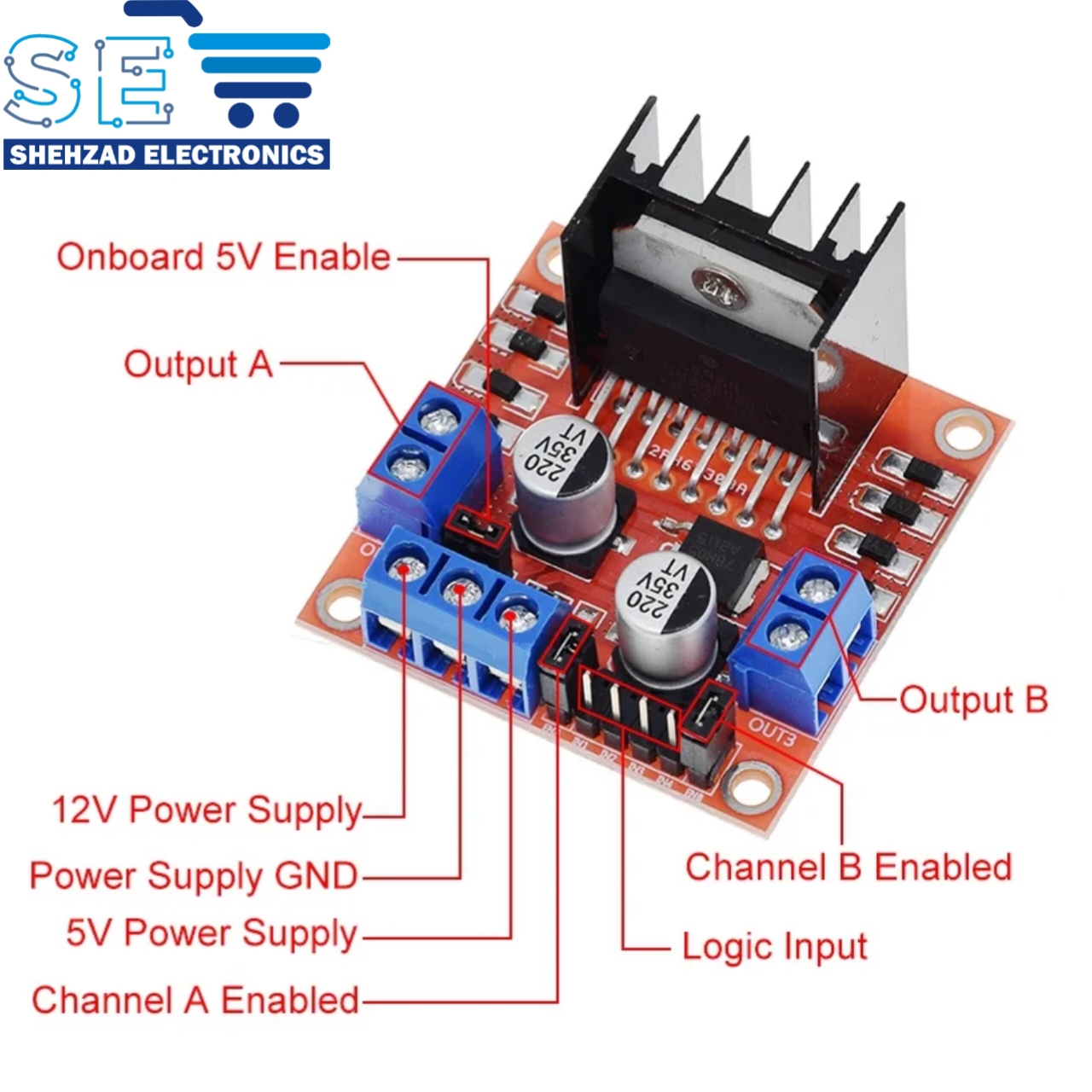

The L298N Motor Driver Module is a powerful and widely used motor control board designed for controlling DC motors and stepper motors with ease. It works perfectly with Arduino, ESP32, Raspberry Pi, and other microcontrollers. The module features a Dual H-Bridge driver IC that allows you to control the speed and direction of two DC motors independently.
⚙️ Specifications
| Feature | Details |
|---|---|
| Driver IC | L298N |
| Operating Voltage | 5V – 35V DC |
| Logic Voltage | 5V |
| Output Current | 2A per Channel (Peak) |
| Channels | Dual Channel |
| Motor Support | DC Motors & Stepper Motors |
| Control Method | PWM / Digital Control |
| Cooling | Aluminum Heat Sink |

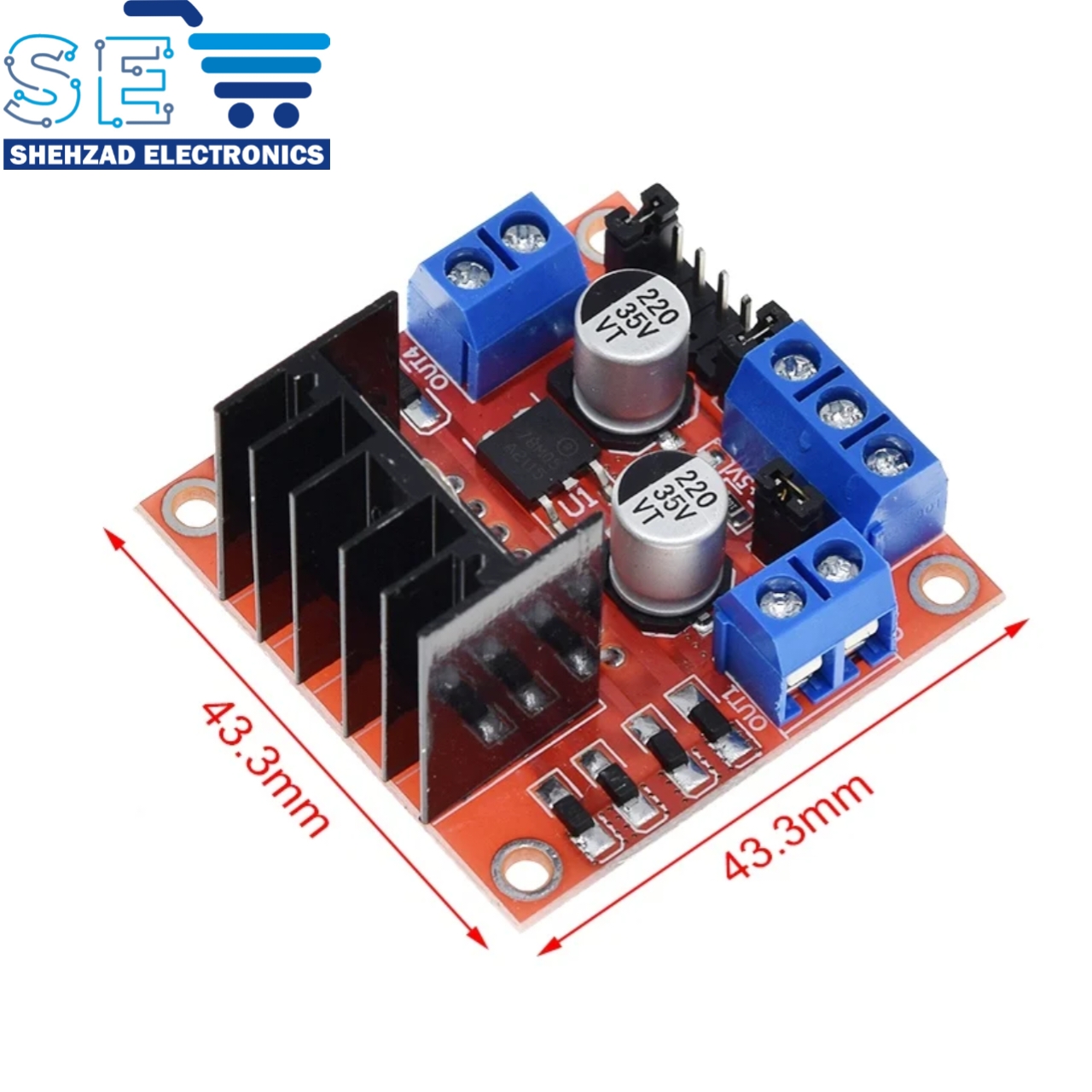

| Board Size | Approx. 43mm × 43mm |
📦 Applications
- 🤖 Robotics Projects
- 🚗 RC Cars
- 🛞 Smart Vehicles
- 🏭 Automation Systems
- 🎯 DIY Electronics Projects
- 🔧 Arduino Based Projects
