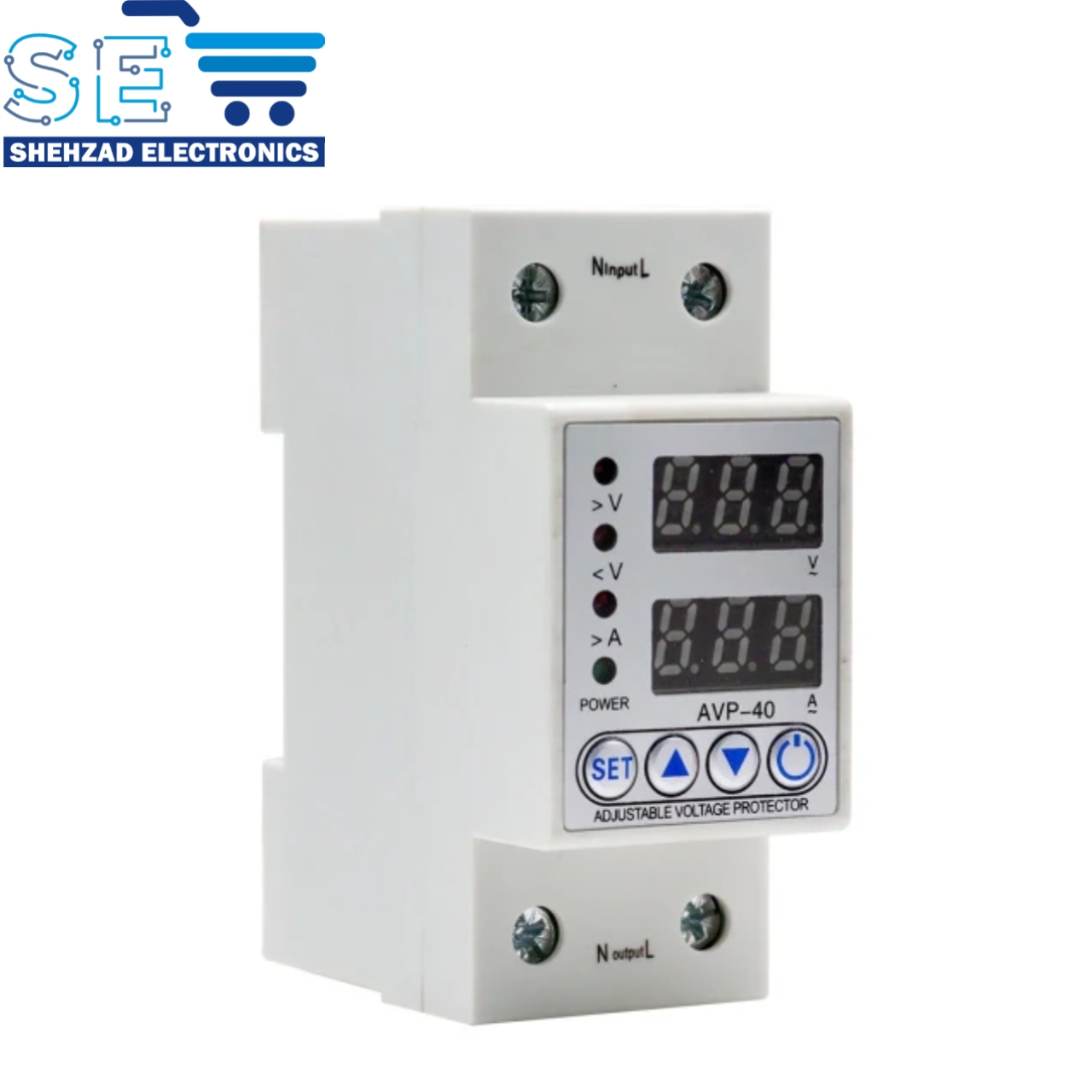

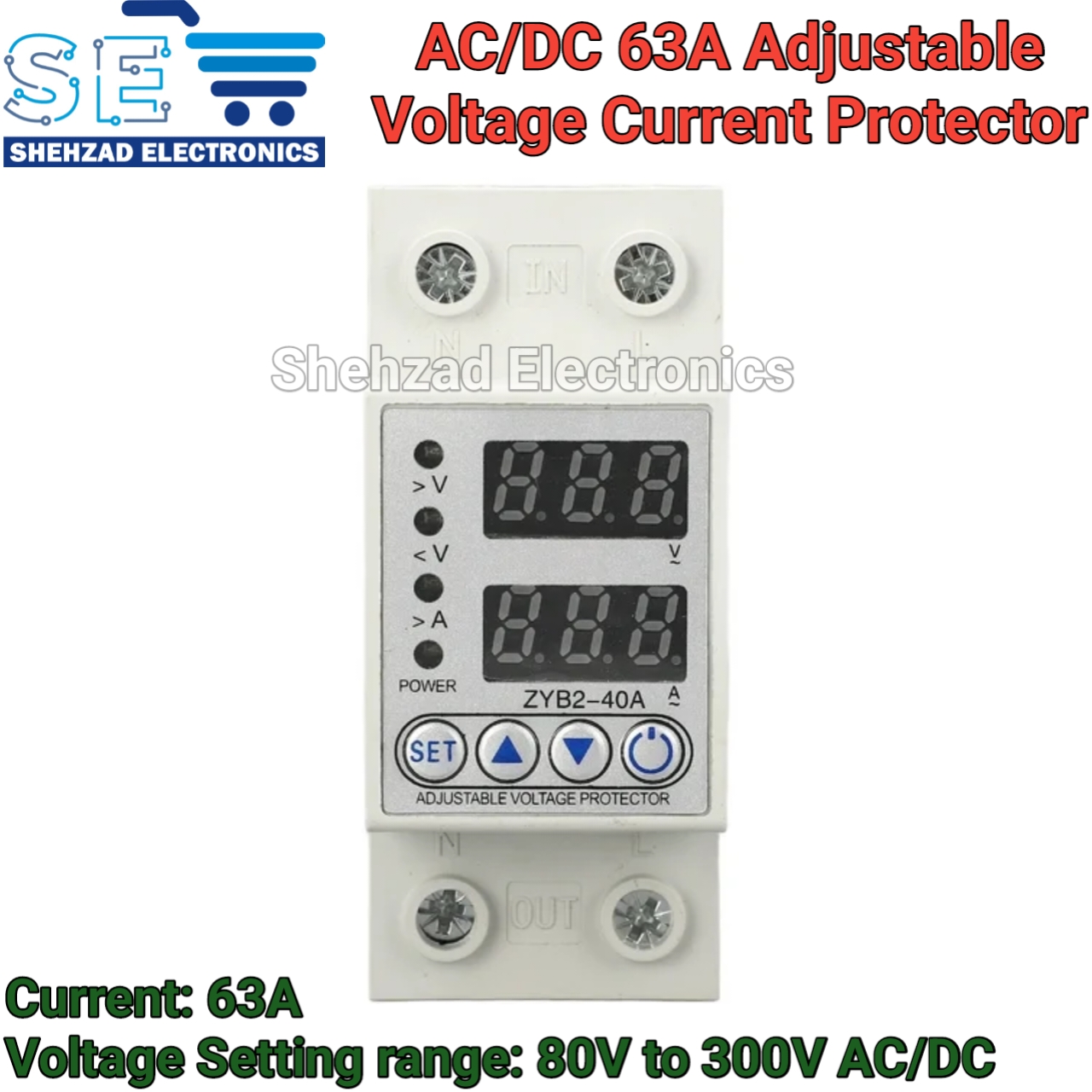

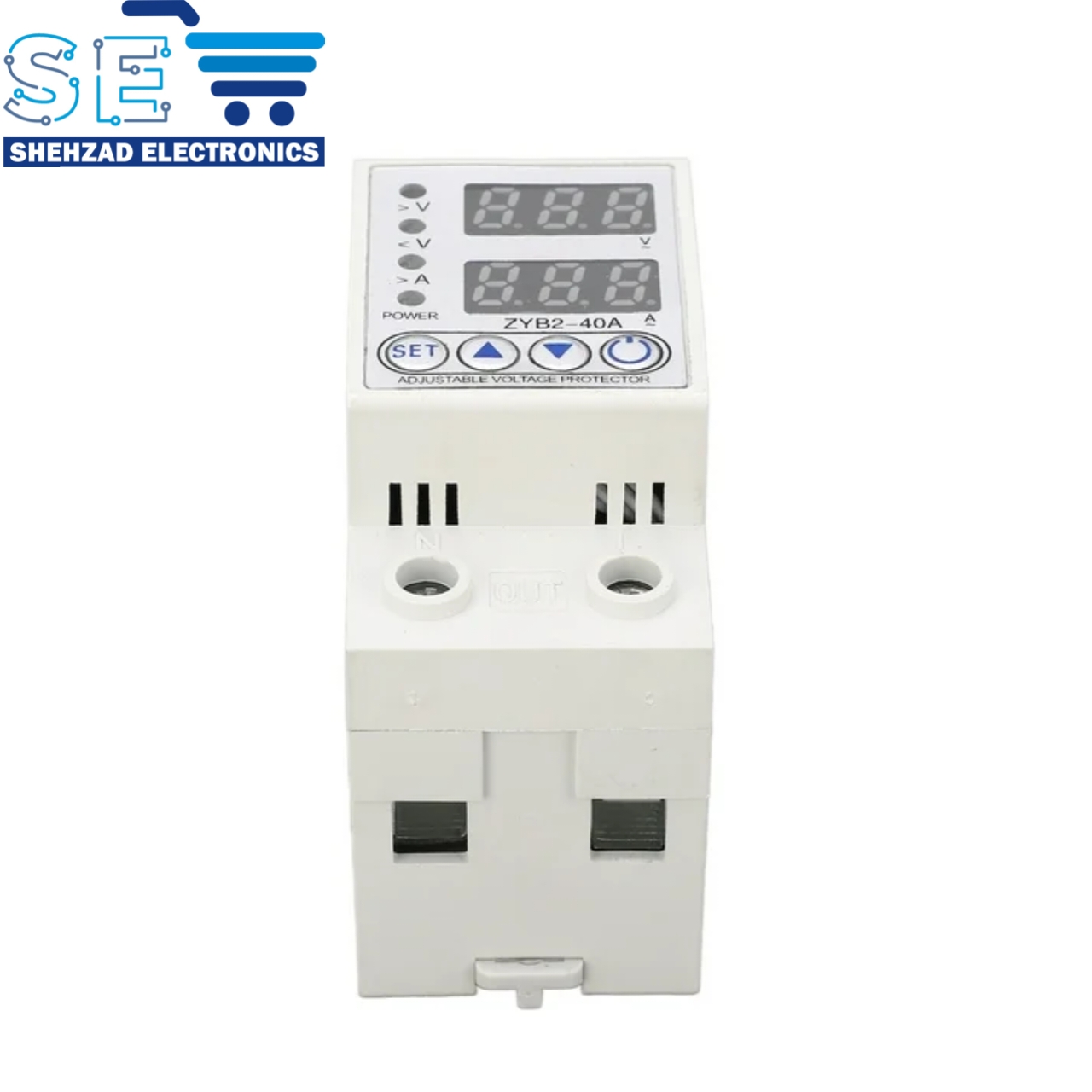

63A AC 220V Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector

1.Model1.VOLTECK

2.Power supply:AC220V 50Hz

3.Max.Loading power: AC1~40A Adjustable(default:40A)

AC1~63A Adjustable(default:63A)

4.Overvoltage action cut-off value: 240V-300VAC can be set as a section (default 270VAC)

5.Under voltage action cut-off value: 140V-200VAC, adjustable (default 170VAC)

6.Overcurrent action cut-off value: 63A: 1A-63A can be set as a section (default 63A) / 40A: 1A-40A can be set as a section (default 40A)

7.Power on and power off delay time: 5-300S adjustable (default 30S)

8.Startup delay time: 1-300S adjustable (default 5S)

9.Reset delay time after overcurrent protection: 30-300S adjustable (default 30S)

10.Delay time for product overcurrent: 6s (overcurrent time greater than this time will be confirmed as overcurrent and protected)

11.Self power consumption: ≤ 2W

12.Electrical and mechanical life:>100000 timesol

2.Power supply:AC220V 50Hz

3.Max.Loading power: AC1~40A Adjustable(default:40A)

AC1~63A Adjustable(default:63A)

4.Overvoltage action cut-off value: 240V-300VAC can be set as a section (default 270VAC)

5.Undervoltage action cut-off value: 140V-200VAC, adjustable (default 170VAC)

6.Overcurrent action cut-off value: 63A: 1A-63A can be set as a section (default 63A) / 40A: 1A-40A can be set as a section (default 40A)

7.Power on and power off delay time: 5-300S adjustable (default 30S)

8.Startup delay time: 1-300S adjustable (default 5S)

9.Reset delay time after overcurrent protection: 30-300S adjustable (default 30S)

10.Delay time for product overcurrent: 6s (overcurrent time greater than this time will be confirmed as overcurrent and protected)

11.Self power consumption: ≤ 2W

12.Electrical and mechanical life:>100000 times
